Rough Country 2 Inch Lift Kit - N3 Struts N3 - Ford F-150 4WD (2014-2020)

Rough Country 2 Inch Lift Kit - N3 Struts N3 - Ford F-150 4WD (2014-2020)

$469.95 USD
$469.95 USD $469.95 USD
Sale Sold out
Shipping calculated at checkout.

SKU:DHTP-50006
  • Easy bolt-on installation
  • Maintains factory ride quality
  • Increased ground clearance
  • Levels the front with the rear of the vehicle
  • Built from aircraft quality T6061 Billet Aluminum
  • GTIN: 00843030134563
  • Brand Name: Rough Country

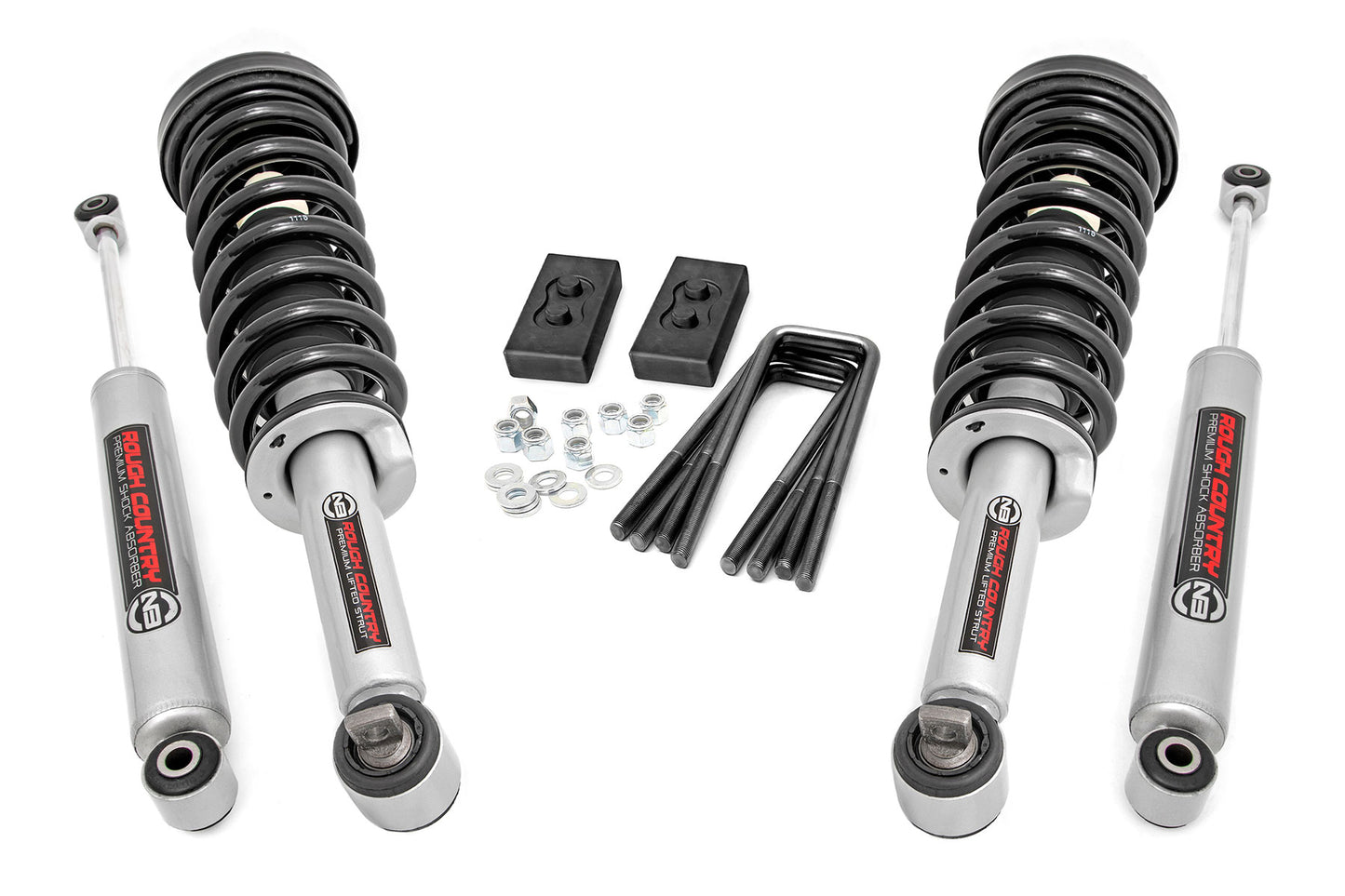

  • Front Components: (2) Premium N3 Series Lifted Struts
  • Install Time: 2-3 hours
  • Rear Components: 1 in lift blocks, U-bolts, Hardware
  • Tire Wheel and Offset Info: 295 60R20:Factory 20:6x135:0.25 Spacer; 285 75R17:Factory 17:6x135; 285 70R18:Factory 18:6x135; 33x12.50R17:17x8.5:6x135:+0; 285 70R17:17x8.5:6x135:+0; 33x12.50R17:17x8.5:6x135:+1; 33x12.50R17:17x9:6x135:-12; 285 70R17:17x9:6x135:-12; 33x12.50R17:17x9:6x135:+0; 285 70R17:17x9:6x135:+0; 33x12.50R17:17x9:6x135:+1; 285 70R17:17x9:6x135:+1; 33x12.50R17:17x9:6x135:+18; 285 70R17:17x9:6x135:+18; 33x12.50R18:18x8.5:6x135:+0; 305 60R18:18x8.5:6x135:+0; 33x12.50R18:18x8.5:6x135:+1; 305 60R18:18x8.5:6x135:+1; 33x12.50R18:18x9:6x135:-12:Trimming Required; 285 65R18:18x9:6x135:-12; 33x12.50R18:18x9:6x135:+0; 305 60R18:18x9:6x135:+0; 33x12.50R18:18x9:6x135:+1; 305 60R18:18x9:6x135:+1; 285 65R18:18x9:6x135:+1; 33x12.50R18:18x9:6x135:+18; 305 60R18:18x9:6x135:+18; 33x12.50R18:18x9:6x135:+20; 305 60R18:18x9:6x135:+20; 33x12.50R20:20x9:6x135:-12; 305 55R20:20x9:6x135:-12; 285 55R20:20x9:6x135:-12; 33x12.50R20:20x9:6x135:+0; 305 55R20:20x9:6x135:+0; 285 55R20:20x9:6x135:+0; 33x12.50R20:20x9:6x135:+1; 305 55R20:20x9:6x135:+1; 285 55R20:20x9:6x135:+1; 33x12.50R20:20x9:6x135:+18; 305 55R20:20x9:6x135:+18; 33x12.50R20:20x9:6x135:+20; 305 55R20:20x9:6x135:+20; 285 55R20:20x9:6x135:+20; 33x12.50R20:20x10:6x135:-25:Trimming Required; 305 55R20:20x10:6x135:-25:Minor Trimming; 285 55R20:20x10:6x135:-25; 33x12.50R20:20x10:6x135:-24:Trimming Required; 305 55R20:20x10:6x135:-24:Minor Trimming; 285 55R20:20x10:6x135:-24; 33x12.50R20:20x10:6x135:-19:Trimming Required; 305 55R20:20x10:6x135:-19:Minor Trimming; 285 55R20:20x10:6x135:-19; 33x12.50R20:20x10:6x135:-18:Trimming Required; 305 55R20:20x10:6x135:-18:Minor Trimming; 285 55R20:20x10:6x135:-18; 33x12.50R20:20x12:6x135:-44:Trimming Required; 305 55R20:20x12:6x135:-44; 33x12.50R22:22x10:6x135:-25:Trimming Required; 33x12.50R22:22x10:6x135:-24:Trimming Required; 33x12.50R22:22x10:6x135:-19:Trimming Required; 33x12.50R22:22x10:6x135:-18:Trimming Required; 33x12.50R22:22x12:6x135:-44:Trimming Required
  • Country of Origin: China
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 34 x 14.25 x 6 inches
  • Weight: 62.75 lb
