RIGID Adapt E-Series LED Light Bar With 3 Lighting Zones And GPS Module 50 Inch

RIGID Adapt E-Series LED Light Bar With 3 Lighting Zones And GPS Module 50 Inch

$1,899.99 USD
$1,899.99 USD $1,899.99 USD
Sale Sold out
Shipping calculated at checkout.

SKU:FLWB-290413

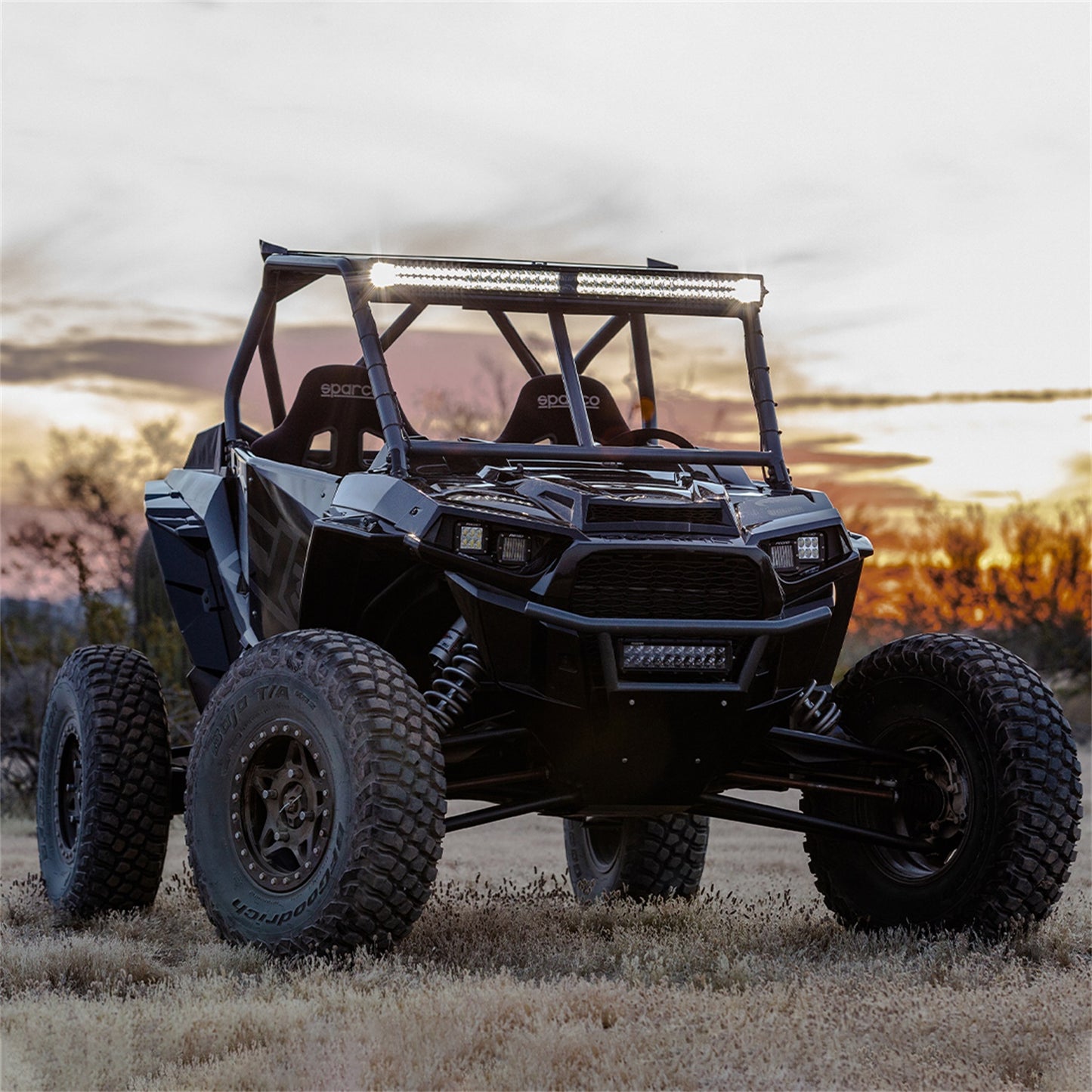

The RIGID Adapt E-Series LED Light Bar features the same style and construction as RIGIDs legendary E-Series, from the high-strength aluminum heat sink to the unbreakable polycarbonate lens. On the inside, however, the Adapt E-Series contains cutting-edge technology. The Adapt E-Series takes off-road lighting performance to a whole new level with two layers of adaptive response to your vehicle and driving conditions.
  • Use In Adapt Mode Or All On
  • GTIN: 00849774033179
  • Brand Name: RIGID Industries
  • A = LUX at 10 Meters: 9,398
  • Add-On: 11001, 11002, 11003, 11008, 46590, 1063, 1067, 1031, 30130, 30140, 30150
  • ASIN: No
  • B = Beam Distance with 1 LUX: 969
  • C = Beam Distance with .25 LUX: 1,939
  • Field Horizontal (Measured in Degrees): 17
  • Field Vertical (Measured in Degrees): 16
  • Number of LED's: 112
  • Peak Beam Intensity (cd): 939,827
  • Product Family: Adapt
  • Product Weight: 13.84
  • Raw Lumens: 38,896
  • Size: 50 in.
  • test series: Universal Fit
  • Watts: 358
  • What's In The Package: Stainless Steel Mounting Brackets, Hardware Kit, Wire Harness, Relay, Switch, Install Instructions
  • Zone 1 A: 53.62
  • Zone 1 Amp Draw: 6.3
  • Zone 1 B: 73.2
  • Zone 1 C: 146.5
  • Zone 1 Horizontal Field beam angle: 101.9
  • Zone 1 LED's count: 8
  • Zone 1 Peak CD: 5,362
  • Zone 1 Raw Lm: 8,641
  • Zone 1 Vertical Field beam angle: 96.5
  • Zone 1 Watts: 88
  • Zone 2 A: 2285.65
  • Zone 2 Amp Draw: 19.6
  • Zone 2 B: 478.1
  • Zone 2 C: 956.2
  • Zone 2 Horizontal Field beam angle: 51.1
  • Zone 2 LED's count: 52
  • Zone 2 Peak CD: 228,565
  • Zone 2 Raw Lm: 33,176
  • Zone 2 Vertical Field beam angle: 22.1
  • Zone 2 Watts: 274
  • Zone 3 A: 9398.27
  • Zone 3 Amp Draw: 25.6
  • Zone 3 B: 969.4
  • Zone 3 C: 1938.9
  • Zone 3 Horizontal Field beam angle: 17.7
  • Zone 3 LED's count: 52
  • Zone 3 Peak CD: 939,827
  • Zone 3 Raw Lm: 38,896
  • Zone 3 Vertical Field beam angle: 16.5
  • Zone 3 Watts: 358
  • Country of Origin: Mexico
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 6 x 53.25 x 6 inches
  • Weight: 19 lb

PDF:
