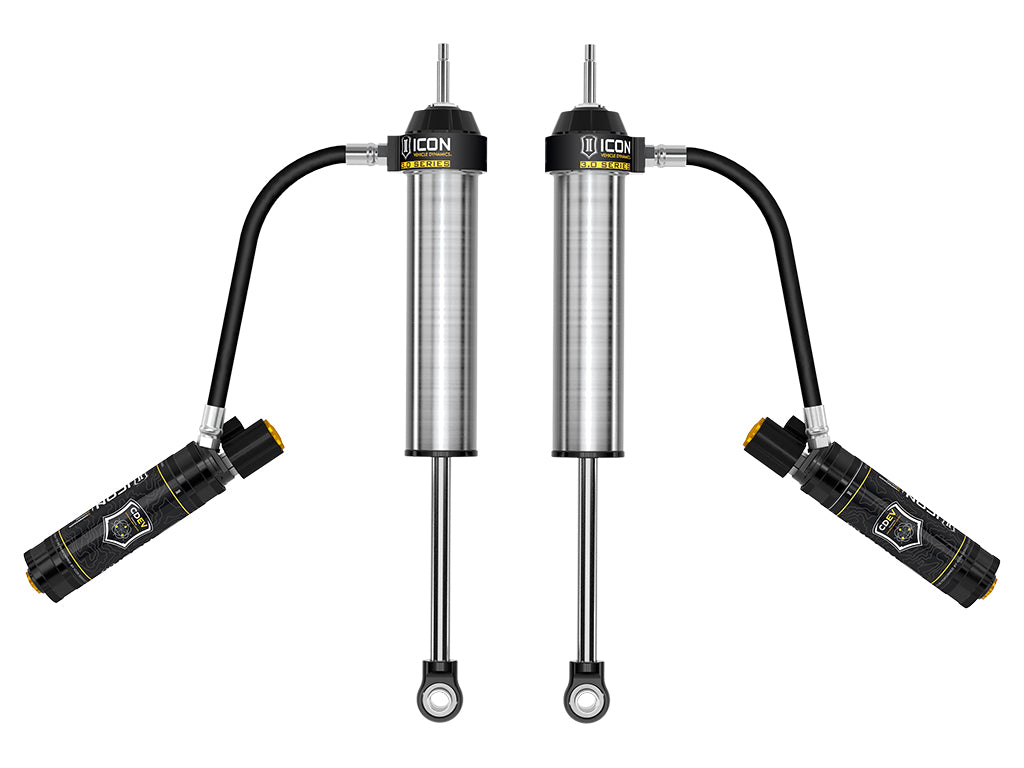

ICON 22-23 Toyota Tundra 0-1.5"/23 Sequoia 0-3" Rear 3.0 VS Shocks W/CDEV Pair

ICON 22-23 Toyota Tundra 0-1.5"/23 Sequoia 0-3" Rear 3.0 VS Shocks W/CDEV Pair

$2,299.95 USD
$2,299.95 USD $2,299.95 USD
Sale Sold out
Shipping calculated at checkout.

SKU:FRDK-57845EP
These 3.0 Series Shocks are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Compatible with rear lift heights from 0-1.5” over stock on Tundra or up to 3" of rear lift on Sequoia, allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • Fully Rebuildable and Re-tunable
  • 20% increase in rear suspension travel compared to stock
  • Compatible with up to 1.5” of rear lift on most Tundra models or 3" of lift on Sequoia
  • Vehicle specific design and tuning for superior shock damping and control
  • 3.0” Body diameter for increased oil volume and larger piston area
  • CNC machined 6061 aluminum components with a black anodized finish
  • PTFE lined spherical bearings for extended longevity and minimal deflection
  • 7/8” diameter induction hardened, chrome plated shock shafts
  • Corrosion resistant CAD plated steel shock bodies
  • GTIN: 00840103421308
  • Brand Name: ICON Vehicle Dynamics
  • 30: Yes
  • 3390: Performance
  • 359: 3
  • 40: Yes
  • 408: Center of Eyelet
  • 409: Shoulder of Stem
  • 48: Eyelet
  • 49: Stem
  • 50: NO
  • 51: Yes
  • 905: 2.75
  • Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
  • Cylinder Color: Grey
  • Cylinder Diameter: 3
  • Cylinder Material: Steel
  • Damping Adjustment Type: Electronic
  • Damping Type: Oil
  • External Reservoir: Yes
  • Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
  • Shaft Diameter: 0.875
  • Shaft Material: Chrome
  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 31.0000 x 13.0000 x 7.0000 inches
  • Weight: 43.0000 lb
