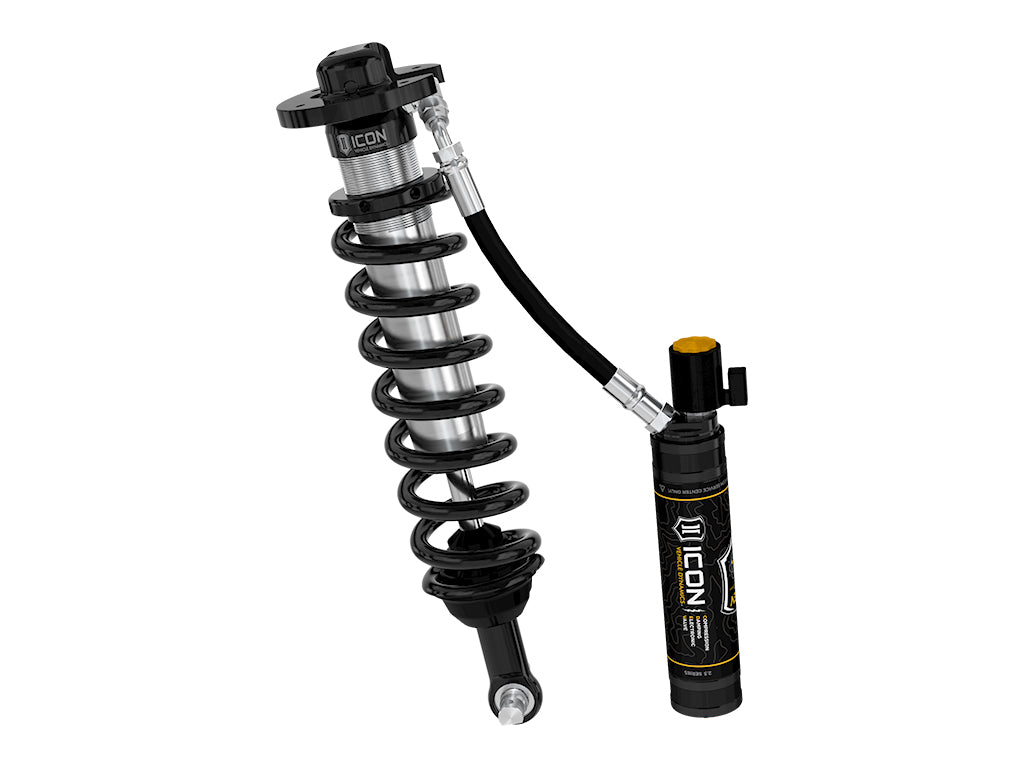

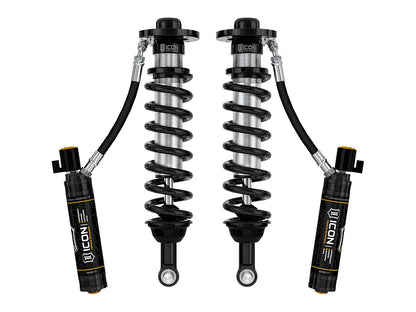

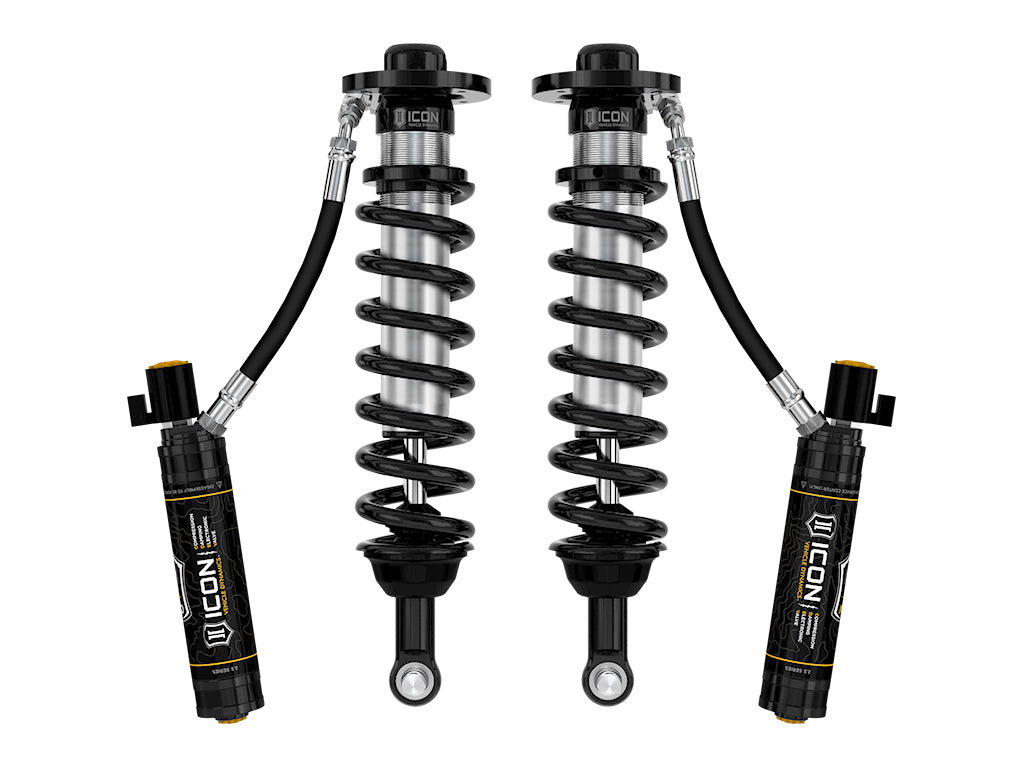

ICON 2022-2023 Ford F-150 Lightning Lowered 0-2" 2.5 VS Remote Reservoir CDEV Coilover Kit Front
ICON 2022-2023 Ford F-150 Lightning Lowered 0-2" 2.5 VS Remote Reservoir CDEV Coilover Kit Front
Regular price
$2,799.95 USD
Regular price
$2,799.95 USD
Sale price
$2,799.95 USD
Unit price
per
Shipping calculated at checkout.
SKU:FRDK-91831E
Couldn't load pickup availability
Take control of your suspension like never before with the power of ICON Intelligent Control and the proprietary ICON mobile app. This innovative system leverages information from the onboard G-force sensor and gyroscope, utilizing cutting-edge algorithms and user-defined settings to predict terrain and actively adjust shock damping settings via CDEV accordingly. When combined with ICON 2.5 Series CDEV rear coilovers, your vehicle's control will be balanced front to rear, providing you with the ultimate driving experience for your F-150 Lightning.
- Height-adjustable coilovers offer 0-2" of lowered height adjustment
- FK Rod End bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- 100% Bolt-on - no cutting or welding necessary for installation
- Vehicle specific tuned front shocks for superior shock damping and vehicle control
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Remote reservoir to maintain cooler operating temperatures and house CDE Valves
- Increased compression travel compared to stock
- ICON engineered coil springs with opmized spring rates for improved ride quality
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
- High strength alloy CNC machined lower bar pins
Attributes
Attributes
- GTIN: 00840103423616
- Brand Name: ICON Vehicle Dynamics
- 2917: Yes
- 3390: Performance
- 408: Flat on Bar Pin
- 409: Top of Upper Mount Plate
- 48: BAR PIN
- 49: Mounting Plate
- 50: No
- 51: Yes
- 52: 2.5
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Damping: Yes
- Coil Over Springs Included: Yes
- Damping Adjustment Type: Electronic
- Damping Type: Oil
- Dust Shield: No
- Material: Aluminum
- Maximum Drop: 2
- Minimum Drop: 0
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 12.00" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: 20x9" with 6” Backspace / 25mm Offset
- Remote Reservoir: Yes
- Shaft Diameter: 0.875
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Linear
Extended Information
Extended Information
- Country of Origin: US
- Emissions : 4
- Life Cycle Status: Available To Order
Packing Information
Packing Information
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
- Weight: 60.0000 lb
