Dobinsons 2.5-3.0" MRR 3-Way Adjustable Lift Kit for LEXUS LX470 IFS Lift Kit 1998-2007
Dobinsons 2.5-3.0" MRR 3-Way Adjustable Lift Kit for LEXUS LX470 IFS Lift Kit 1998-2007
SKU:DSSKITMRA75
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression - For creepy crawling and cornering
- 15 Stage Rebound - Control your coils, prevent bucking
- 60mm CNC Machined High Flow Billet Aluminium Race Piston
- 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM‐HNBR Sealing System
- TSUGAMITM CNC machined components for precise tolerances
- ParkerTM Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low‐wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- Direct Bolt-On Design
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design

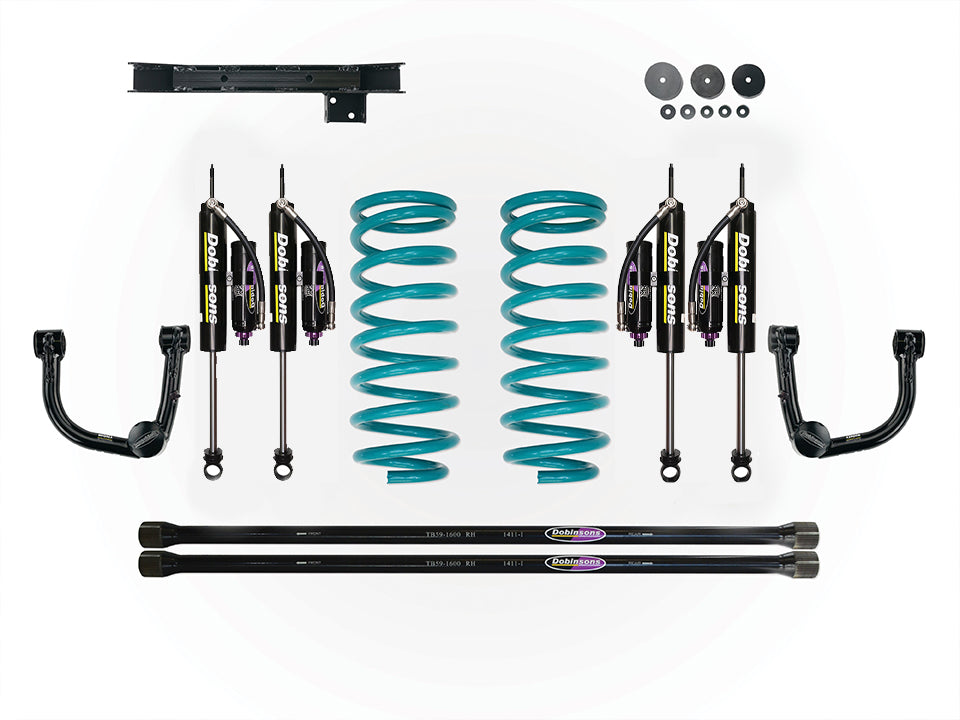

- Includes 2 Front MRR Shocks, 2 Rear MRR Shocks, 2 Coil Springs, 2 Torsion Bars Gas Engine, Upper Controll Arms and a Diff drop kit.
- A suitable full replacement for the AHC hydraulic system when installed all together.--
Diff Drop Kit Instructions
Front Shocks Instructions
Rear Shocks Instructions
Dobinsons offer this complete suspension kit for the 1998-2007 Toyota Land Cruiser 100 Series and LX470. A suitable full replacement for the AHC hydraulic system when installed all together. ***Contact Dobinsons directly if you would like to change the coils for different load settings or rear lift height*** Designed, developed and tested in Australia by Dobinsons Spring & Suspension, in-house suspension design engineers, Dobinsons suspension components are designed and tested to perform in the harshest conditions right across the world. The importance of quality is at the forefront in the complete design and manufacturing process. This ensures every part can withstand the blistering heat and corrugations of the Australian outback right through to the subzero temperatures of a Russian winter. Our MRR shock absorbers are made from the world’s highest quality external and internal parts sourced worldwide. They provide a significant increase in performance over the standard shock absorbers. Dobinsons MRR shock absorbers feature larger bodies, larger bores and increased valving performance to dramatically improve vehicle handling and control and reduces shock fade. We proudly manufacture the highest quality replacement coil springs for many different applications, complying to ISO9001:2008 international quality standards from our state of the art manufacturing facility in Central Queensland, Australia. All our coil springs are load tested and scragged 100% to eliminate subsequent spring sag. We also perform spring fatigue and hardness testing using in-house state of the art testing equipment. Dobinsons Torsion Bars feature an increased spring rate, cold rolled splines, durable powder coat finish, and are directionally preset and scragged for perfect OE fitment.
