Dobinsons 1.75" up to 2.5" MRR 3-way Adjustable Lift Kit for Toyota Land Cruiser 80 Series 1990-97 (Build Your Kit)

Dobinsons 1.75" up to 2.5" MRR 3-way Adjustable Lift Kit for Toyota Land Cruiser 80 Series 1990-97 (Build Your Kit)

Regular price $3,370.00 USD
Regular price Sale price $3,370.00 USD
Sale Sold out
Shipping calculated at checkout.


    • 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
    • 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
    • 20 Stage Low Speed Compression - For creepy crawling and cornering
    • 15 Stage Rebound - Control your coils, prevent bucking
    • 60mm CNC Machined High Flow Billet Aluminium Race Piston
    • 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm
    • Upgraded 3 Stage FKM‐HNBR Sealing System
    • TSUGAMITM CNC machined components for precise tolerances
    • ParkerTM Braided High Pressure Hoses
    • 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
    • Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low‐wear performance
    • 60mm Full 6063 aluminum remote reservoir
    • Lightweight CNC Machined Low Friction floating piston
    • High Quality O.E.M. Grade Natural Rubber Bushings
    • Single Piece Lower Leg
    • EDP Surface Protection
    • Direct Bolt-On Design
    • CNC TIG Precision Welded Body End Mounts
    • Fully Rebuildable Design
    • For Rear Hydraulic Bump Stops click HERE

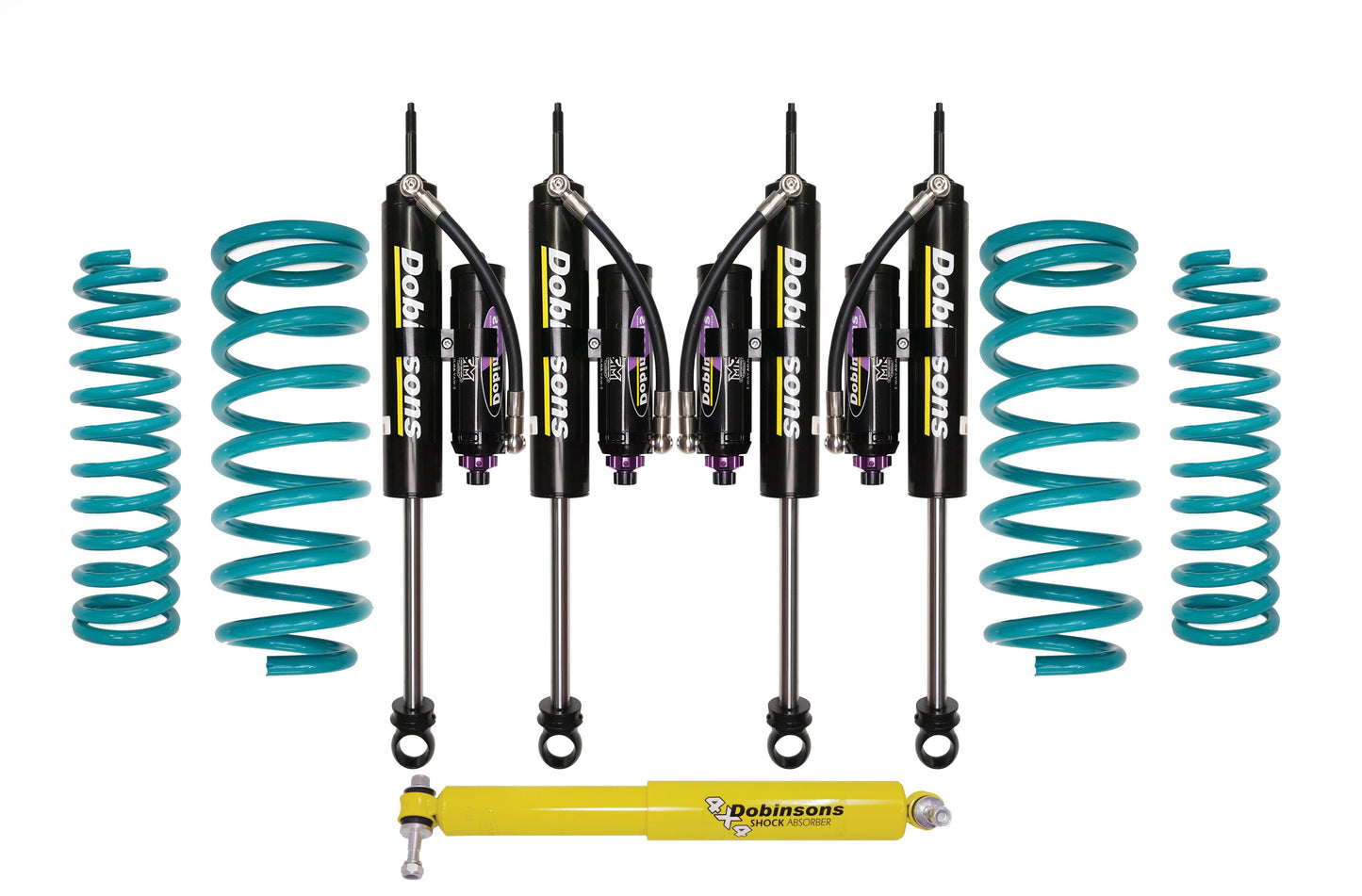

    • Kit Includes:
      • MRA59-A683 - 0-3" Front MRR Shocks
      • Choice of Front Coils
      • SD59-824 Front Steering Damper
      • MRA59-A682 - 0-3" Rear MRR Shocks
      • Choice of Rear Coils



    Front Reservoir Installation Instructions

    Rear Reservoir Installation Instructions

    Dobinsons offer this complete suspension system for the 1990 to 1997 Toyota Land Cruiser 80 Series, with different coil and height options offered in the drop down boxes.  Using the amount of adding weight/load to your vehicle, such as bumpers, winch, 2nd battery, etc, choose the appropriate weight coil and desired lift height. Kit includes front and rear shocks and coils, and front steering damper.  Additional parts available to add on. ***Contact Dobinsons directly for info about the coils for different load options or questions*** Designed, developed and tested in Australia by Dobinsons Spring & Suspension, in-house suspension design engineers, Dobinsons 4×4 shock absorbers and coil springs are designed and tested to perform in the harshest conditions right across the world. We export to over 40 countries worldwide from our Australian head office, the importance of quality is at the forefront in the complete design and manufacturing process. This ensures every shock and coil spring can withstand the blistering heat and corrugations of the Australian outback right through to the subzero temperatures of a Russian winter. Our Twin Tube Nitrogen Gas charged shock absorbers are made from the world’s highest quality external and internal parts sourced worldwide. They provide a significant increase in performance over the standard shock absorbers. Our twin tube shock absorbers feature larger bodies, larger bores and increased valving performance to dramatically improve vehicle handling and control and reduces shock fade. We proudly manufacture the highest quality replacement coil springs for many different applications, complying to ISO9001:2008 international quality standards from our state of the art manufacturing facility in Central Queensland, Australia. All our coil springs are load tested and scragged 100% to eliminate subsequent spring sag. We also perform spring fatigue and hardness testing using in-house state of the art testing equipment.
