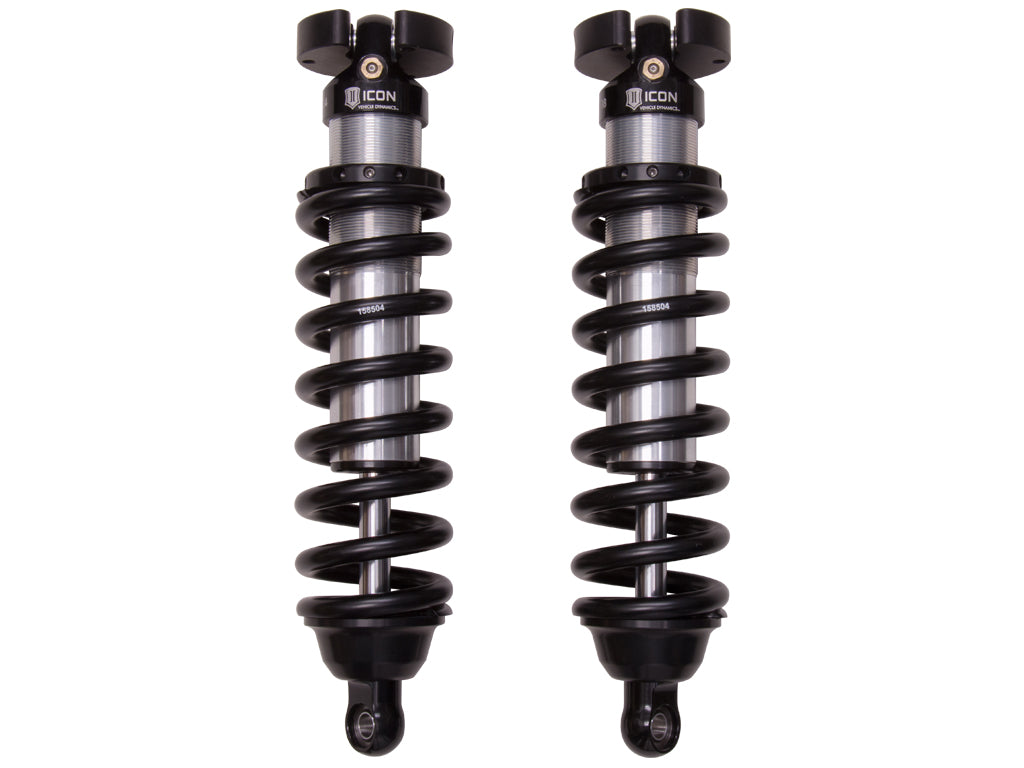

96-04 TACOMA/96-02 4RUNNER 2.5 VS IR COILOVER KIT

96-04 TACOMA/96-02 4RUNNER 2.5 VS IR COILOVER KIT

$1,459.95 USD
$1,459.95 USD $1,459.95 USD
Sale Sold out
Shipping calculated at checkout.

SKU:FRDK-58610
These adjustable coil-over shocks have proven their strength and longevity for years on end and they keep going. These shocks offer the best ride quality and handling. They increase suspension travel and dramatically increase the capabilities of your Tacoma or 4Runner's front suspension. These are a Race-Proven shock designed for the daily driver and the avid off-roader all in one!
  • Adjustable ride height from 0" - 3"
  • Race shock piston with flutter stack compression valving
  • Cad-plated threaded body
  • Billet aluminum upper mount
  • 5/8" PTFE-lined spherical bearings
  • Completely re-buildable
  • 2.5" shock diameter to prevent overheating
  • Chrome-silicon spring
  • 250 PSI nitrogen-charged internal reservoir
  • GTIN: 00840103403779
  • Brand Name: ICON Vehicle Dynamics
  • 2917: yes
  • 3390: Performance
  • 408: Center of Eylet
  • 409: Top of Upper Mount Plate
  • 48: Eyelet
  • 49: Mounting Plate
  • 50: No
  • 51: yes
  • 52: 2.5
  • Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
  • Adjustable Damping: NO
  • Coil Over Springs Included: Yes
  • Damping Type: Oil
  • Dust Shield: No
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Remote Reservoir: NO
  • Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
  • Shaft Diameter: 0.875
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate: 650
  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 26.0000 x 13.0000 x 7.0000 inches
  • Weight: 42.0000 lb
