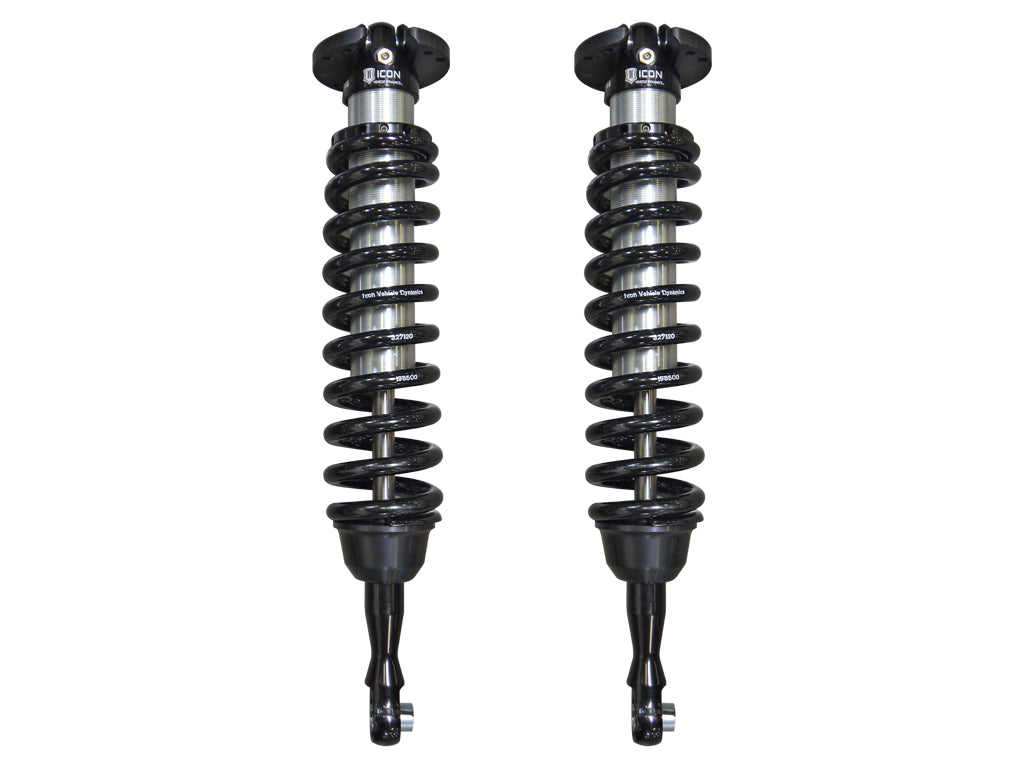

07-21 TUNDRA 2.5 VS IR COILOVER KIT

07-21 TUNDRA 2.5 VS IR COILOVER KIT

$1,499.95 USD
$1,499.95 USD $1,499.95 USD
Sale Sold out
Shipping calculated at checkout.

SKU:FRDK-58650
These adjustable coil-over shocks have proven their strength and longevity for years on end and they keep going. These shocks offer the best ride quality and handling. These shocks add 2" of additional wheel travel and dramatically increase the capabilities of your 07-21 Tundra's front suspension. These coil-over’s come complete with all the hardware necessary to complete the installation.
  • Adjustable ride height from 1" - 3" of lift over stock
  • Race shock piston with flutter stack compression valving
  • Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
  • Billet aluminum upper mount
  • PTFE-lined spherical bearing
  • Completely re-buildable
  • 2.5" shock diameter to prevent overheating
  • Chrome-silicon spring
  • 250 PSI nitrogen-charged internal reservoir
  • GTIN: 00840103404042
  • Brand Name: ICON Vehicle Dynamics
  • 2917: yes
  • 3390: Performance
  • 408: Center of Eylet
  • 409: Top of Upper Mount Plate
  • 48: Eyelet
  • 49: Mounting Plate
  • 50: No
  • 51: yes
  • 52: 2.5
  • Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
  • Adjustable Damping: NO
  • Coil Over Springs Included: Yes
  • Damping Type: Oil
  • Dust Shield: No
  • Maximum Lift: 3
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Remote Reservoir: NO
  • Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
  • Shaft Diameter: 0.875
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate: 600
  • Country of Origin: US
  • Emissions : 4
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 31.0000 x 13.0000 x 7.0000 inches
  • Weight: 50.0000 lb
