07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL 2.5 VS IR COILOVER KIT

07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL 2.5 VS IR COILOVER KIT

$1,459.95 USD
$1,459.95 USD $1,459.95 USD
Sale Sold out
Shipping calculated at checkout.

SKU:FRDK-58645

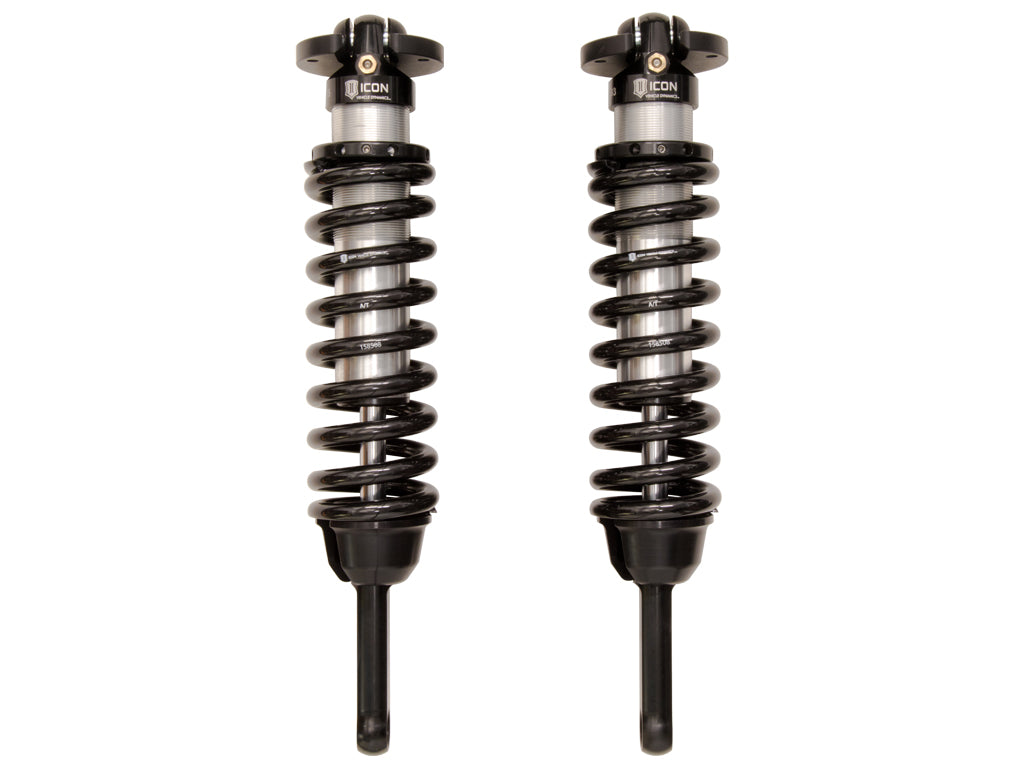

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.
  • Adjustable coilovers yield 0-3.5" of front lift height
  • Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
  • Extended Travel length requires installation of aftermarket front upper control arms
  • Superior low speed control reduces body roll and increases on-road stability
  • High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
  • Corrosion resistant CAD plated shock body with 7/8" shaft
  • FK Rod End bearings provide extended longevity and minimal deflection
  • Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
  • Bolt-in design makes for an easy install into OEM shock location
  • GTIN: 00840103403984
  • Brand Name: ICON Vehicle Dynamics
  • 2917: yes
  • 3390: Performance
  • 408: Center of Eylet
  • 409: Top of Upper Mount Plate
  • 48: Eyelet
  • 49: Mounting Plate
  • 50: No
  • 51: yes
  • 52: 2.5
  • Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
  • Adjustable Damping: NO
  • Coil Over Springs Included: Yes
  • Damping Type: Oil
  • Dust Shield: No
  • Material: Aluminum
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Remote Reservoir: NO
  • Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
  • Shaft Diameter: 0.875
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate: 650
  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 27.0000 x 12.0000 x 6.0000 inches
  • Weight: 45.0000 lb
