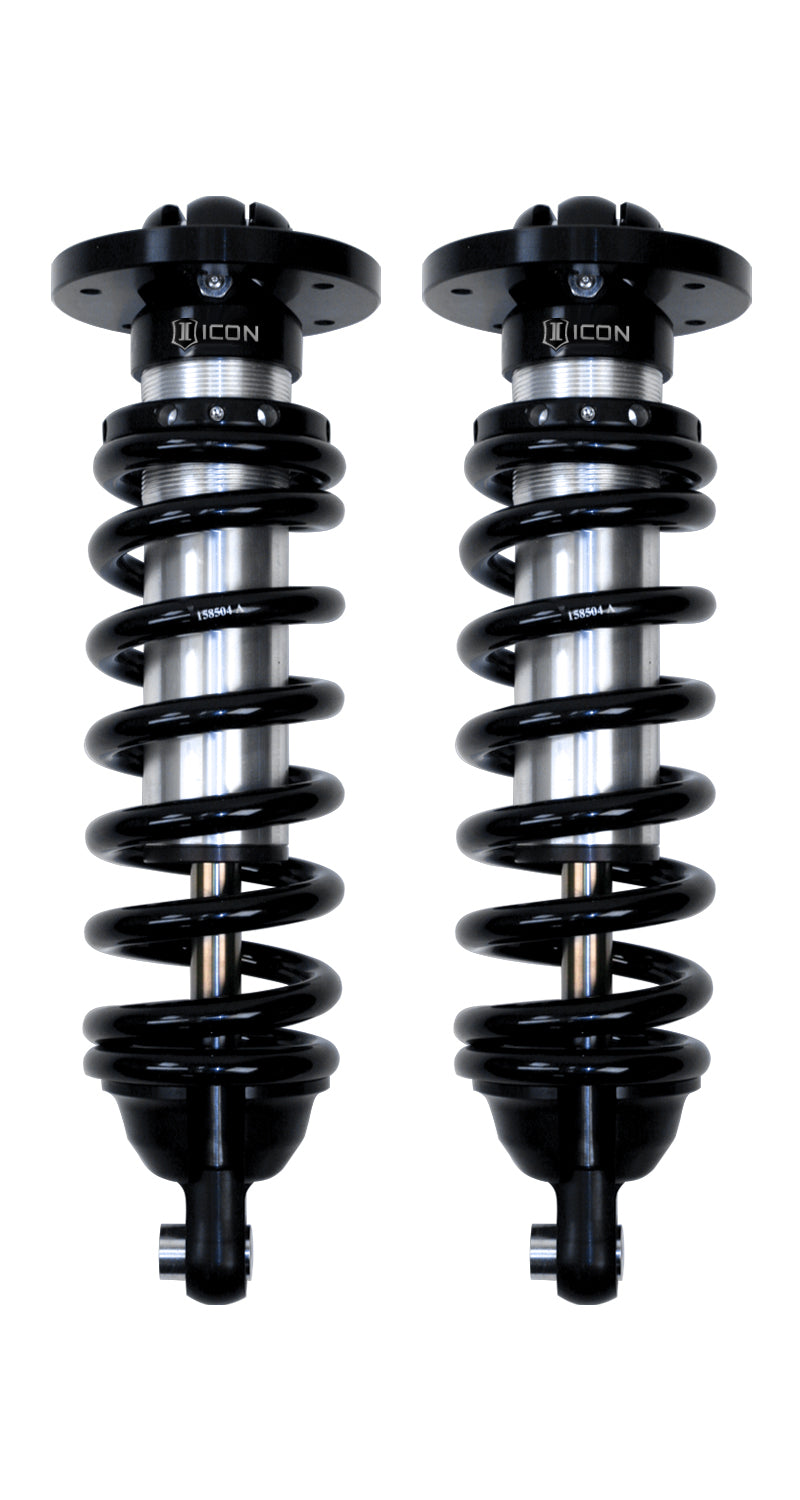

04-15 TITAN 2.5 VS IR COILOVER KIT

04-15 TITAN 2.5 VS IR COILOVER KIT

$1,459.95 USD
$1,459.95 USD $1,459.95 USD
Sale Sold out
Shipping calculated at checkout.

SKU:FRDK-81000
These 0 - 3 Inch Adjustable Coil-over shocks will increase the handling and ride quality of your Nissan Titan or Armada. They are preset with 2 inches of lift out of the box to level out your vehicle and give clearance of 33 Inch Tall Tires.
  • Adjustable ride height from 0" - 3"
  • Race shock piston with flutter stack compression valving
  • Cad-plated threaded body / Optional Extreme Weather Plating
  • Billet aluminum upper mount
  • 5/8" PTFE-lined spherical bearing
  • Completely re-buildable and re-valvable shock
  • 2.5" shock diameter to prevent overheating
  • Chrome-silicon spring
  • 250 PSI nitrogen-charged internal reservoir
  • GTIN: 00840103406657
  • Brand Name: ICON Vehicle Dynamics
  • 2917: yes
  • 3390: Performance
  • 408: Center of Eylet
  • 409: Top of Upper Mount Plate
  • 48: Eyelet
  • 49: Mounting Plate
  • 50: No
  • 51: yes
  • 52: 2.5
  • Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
  • Adjustable Damping: NO
  • Coil Over Springs Included: Yes
  • Damping Type: Oil
  • Dust Shield: No
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Remote Reservoir: NO
  • Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
  • Shaft Diameter: 0.875
  • Spring Color: Black
  • Spring Material: Steel
  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 26.0000 x 13.0000 x 7.0000 inches
  • Weight: 41.0000 lb
