00-06 TUNDRA 2.5 VS IR COILOVER KIT

00-06 TUNDRA 2.5 VS IR COILOVER KIT

$1,459.95 USD
$1,459.95 USD $1,459.95 USD
Sale Sold out
Shipping calculated at checkout.

SKU:FRDK-58620

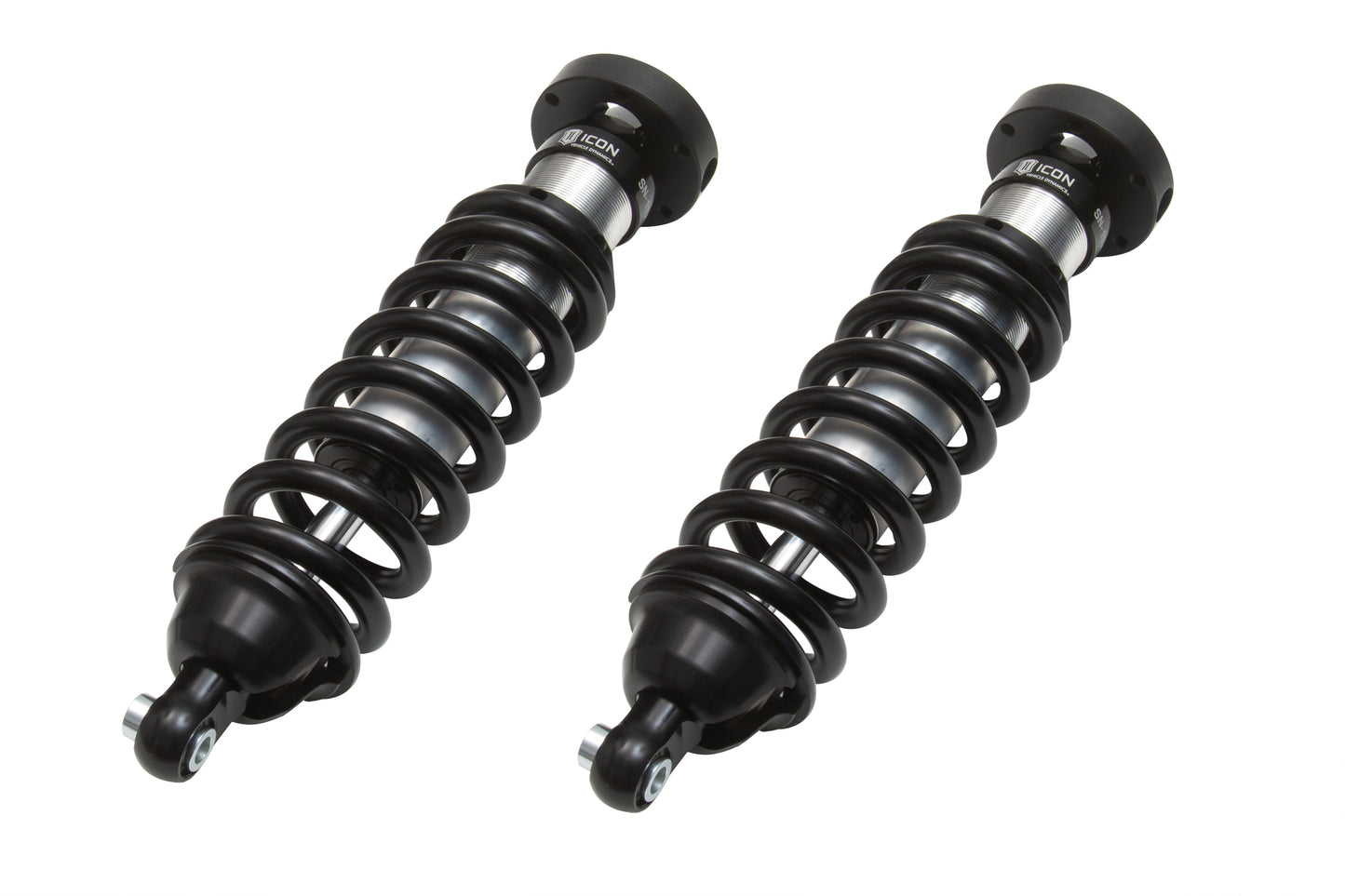

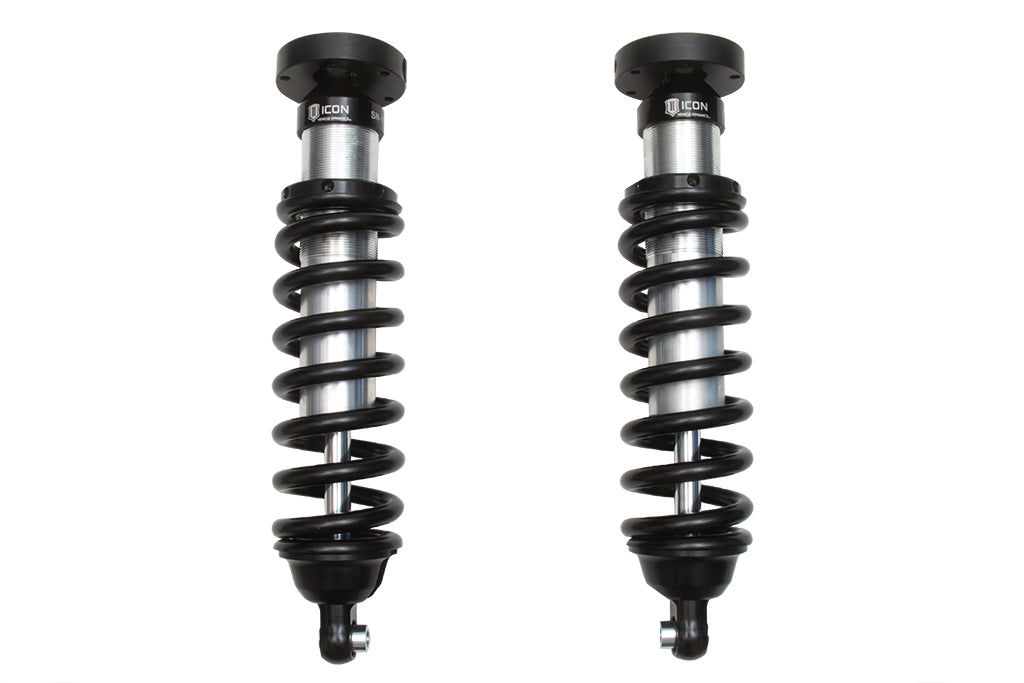

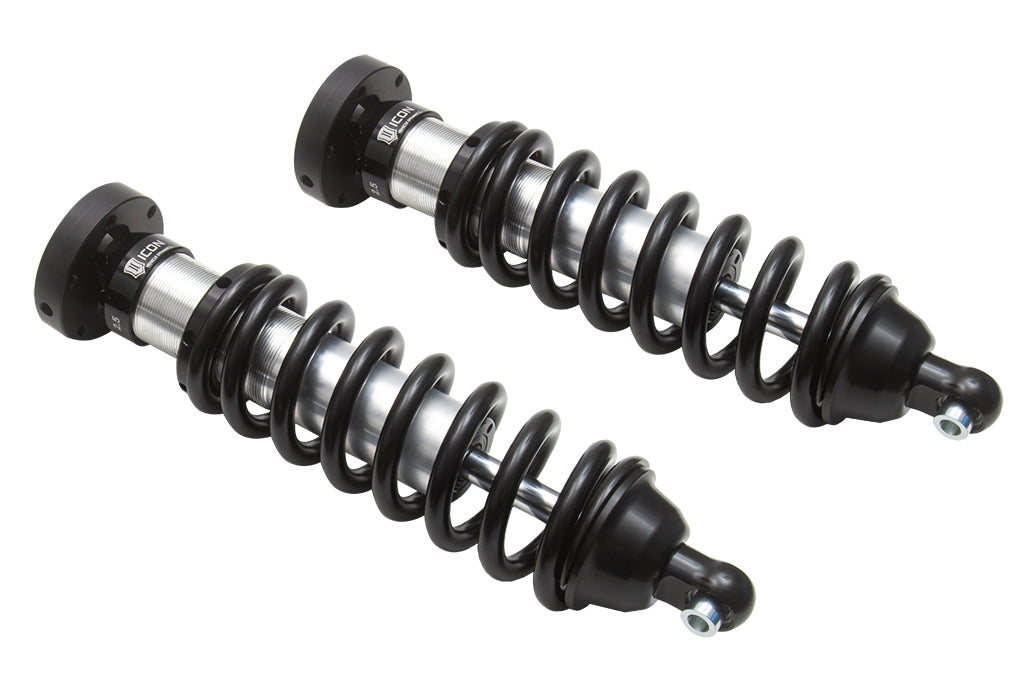

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain.
  • Vehicle specific tuned front shocks for superior shock damping and control
  • Improved ride quality over stock both on and off-road
  • Height-adjustable coilovers offer 0-3" of lift height adjustment
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
  • GTIN: 00840103403816
  • Brand Name: ICON Vehicle Dynamics
  • 2917: yes
  • 3390: Performance
  • 408: Center of Eylet
  • 409: Top of Upper Mount Plate
  • 48: Eyelet
  • 49: Mounting Plate
  • 50: No
  • 51: yes
  • 52: 2.5
  • Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
  • Adjustable Damping: NO
  • Coil Over Springs Included: Yes
  • Damping Type: Oil
  • Dust Shield: No
  • Material: Aluminum
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Remote Reservoir: NO
  • Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
  • Shaft Diameter: 0.875
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate: 650
  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 26.0000 x 13.0000 x 7.0000 inches
  • Weight: 40.0000 lb
